Description
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer's Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock - never a factory second in sight!
Shop with Confidence
- Brand new Australian Stock
- No Factory Seconds
- Full Australian Manufacturer's Warranty
- Secure Online Payments
Description
7.3 kW Cooling | 7.5 kW Heating

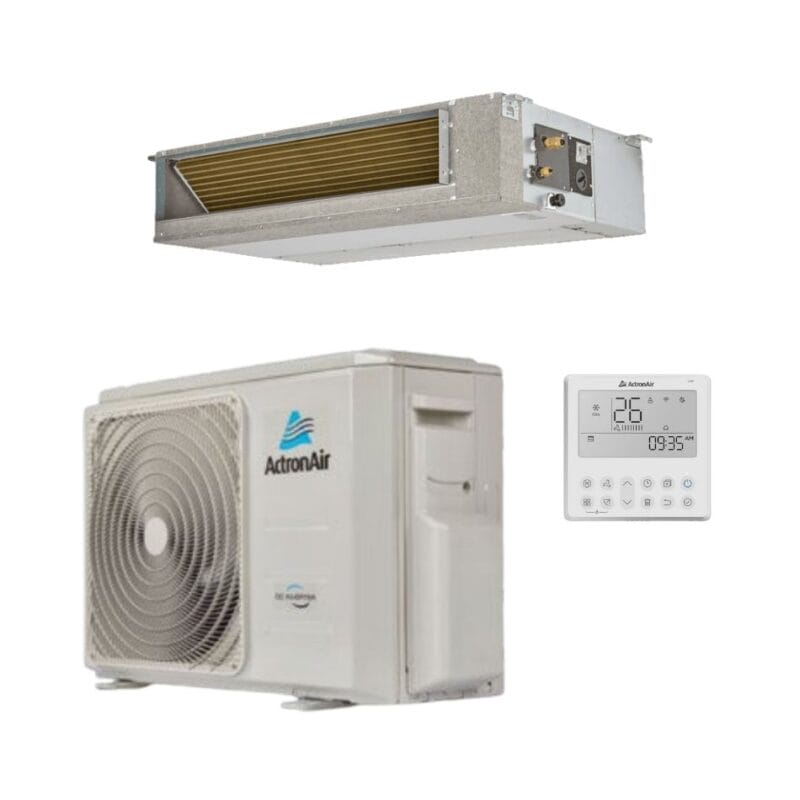

ActronAir Aspire LRE-071DS | LRC-071DS 7.1kW Ultra Slim Low Profile Split Ducted System
Indoor LRE-071DS | Outdoor LRC-071DS
Wired Controller
Indoor 245mm height
Built In Drain Pump
Incorporated Drain Pump with 1000mm lift | Gold Coated Protection
5 Years Manufacturer’s Warranty
Specifications
|
Model
|
Outdoor | LRC-071DS |
| Indoor | LRE-071DS | |
|
Operating
Capacity |
(1)(2) Cooling Capacity (kW) | 7.30 |
| (1)(2) Cooling Capacity Range (kW) | 0.85 ~ 9.09 | |
| (1)(3) Heating Capacity (kW) | 7.50 | |
| (1)(3) Heating Capacity Range (kW) | 2.33 ~ 10.26 | |
|
Electrical
Characteristics |
(1)(4) Cooling Input Power (kW) | 2.139 |
| (1)(4) Heating Input Power (kW) | 1.842 | |
| Standby Power (w) | 4.20 | |
|
Efficiency
|
(1)(2) EER / AEER | 3.413 / 3.390 |
| (1)(3) COP / ACOP | 4.072 / 4.041 | |
| TCSPF Residential (Hot / Avg. / Cold) | 6.080 / 5.510 / 5.848 | |
| HSPF Residential (Hot / Avg. / Cold) | 5.158 / 4.501 / 4.045 | |
| Power Supply | 220 – 240V / 1Ph / 50Hz | |
| Interconnecting Wire (mm2) | 1.0 x 4 | |
| (7) Maximum Running Current (Full Load Amps) | 16 | |
|
(8)
Rated Load Amps |
Cooling | 9.3 |
| Heating | 8.2 | |
| (9) Circuit Breaker (A) | 20 | |
|
IP
Rating |
Outdoor | IPX0 |
| Indoor | IPX4 | |
|
Indoor
Unit Dimensions |
Height (mm) | 245 |
| Width (mm) | 1000 | |
| Depth (mm) | 750 | |
| Indoor Weight | Net (kg) | 31.5 |
|
Spigot
Dimension |
Supply – W x H (mm) | 827 x 178 |
| Return (Under) – W x H (mm) | 892 x 212 | |
| Return (Rear) – W x H (mm) | 892 x 212 | |
|
Airflow Volume
|
Turbo (l/s) | 472 |
| High (l/s) | 417 | |
| Medium (l/s) | 361 | |
| Low (l/s) | 278 | |
| Silence (l/s) | 194 | |
| External Static Pressure | Range (Pa) | 0 ~ 160 |
| Drainage Water Pipe Diameter (mm) | OD Ø25mm | |
|
Outdoor
Unit Dimensions |
Height (mm) | 673 |
| Width (mm) | 890 | |
| Depth (mm) | 342 | |
| Outdoor Weight | Net (kg) | 44.0 |
| Compressor Type | Inverter Single Rotary | |
| Refrigerant Type | R32 | |
|
Pre-Charge
|
Amount (g) | 1500 |
| Length (m) | 20 | |
|
Connections
|
Connection Type | Flared |
| Liquid | Ø9.52 | |
| Gas | Ø15.90 | |
|
Maximum
Piping |
Length (m) | 50 |
| Height (m) | 25 | |
| Minimum Piping | Length (m) | 3 |
| (5) Outdoor Sound Pressure Level @ 1m dB(A) | 61 | |
| (6) Outdoor Sound Power Level dB(A) | 66 | |
|
Operating
Range |
Cooling °C | -15 ~ 50° |
| Heating °C | -20 ~ 24° | |
| Dry °C | 0 ~ 50° | |
| Available Control Options (Sold Seperately) | WC-03 | WTC-01 | |
Buyers Guide
Never Go Wrong with Our Buyers Guide
If you’ve come to shop with us online, be sure to look through our collection of pointers to help with your buyers decision. At Wholesale Air Conditioning, we believe in providing our customers with our available expertise and knowledge. With so many brands and models to choose from, you’ll need to know exactly what your needs may be. Figuring this out can take a few considerations into mind, but our buyers guide will surely square those away.
Wondering about the ideal size for your ducted or wall mounted split system air conditioner? Utilize our new room sizing guide below to determine the perfect fit for your needs.
After determining the size of the area where you plan to install the air conditioner, refer to the following guide to estimate the appropriate kW range.
ROOMS APPROX 10 – 20 SQ METERS
- Bedrooms
- Small lounges
- Small kitchens
- Small offices
- Study
ROOMS APPROX 20 – 30 SQ METERS
- Bedrooms
- Small lounges
- Mid-sized kitchens
- Small rooms with high ceilings
- Offices
- Bedrooms with ensuites
- Study
ROOMS APPROX 30 – 45 SQ METERS
- Large kitchens
- Mid-sized rooms with high ceilings
- Offices
- Large bedrooms
- Bedrooms with ensuites
- Study
- Mid-size lounges
ROOMS APPROX 45 – 65 SQ METERS
- Small shops
- Offices
- Large lounges
- Large open plan areas
Product Availability
We do not list stock levels on our website due to the wide variety of products we carry. Some items are directly sourced from suppliers, while others are stored in our partner local warehouses across Sydney, Brisbane, and Melbourne.
Once you has been confirmed, it undergoes a thorough processing stage to ensure all details are accurate. During this time, we check stock availability within 24 to 72 business hours.
If any supply issues arise, a member of our customer service team will promptly reach out to you via phone, email, or text to confirm your order and provide an update on the stock status.
FAQ, Warranty & Returns
All systems sold by Wholesale Aircon have a 5 year manufacturers warranty. For more details refer to each Manufacturers warranty guidelines.
Important Information to Maintain Your Warranty!
- Keep a copy of your invoice
- Ensure your air conditioning installer is qualified and holds a current refrigeration handling license.
- Ensure operation is as per manufacturer’s instructions.
- Ensure the air inlet and outlet of the outdoor unit is kept clear of obstructions.
- Replace exhausted batteries in remote control.
- If your system fails, contact the manufacturer without delay.
We are unable to deliver to a PO Box as we need ID and a copy of the online receipt when delivery is made.
Wholesale Aircon can help guide you if a warranty issue arises. Firstly the client needs to contact the manufacturer. The number for each manufacturer will be on the warranty form which came with the system purchased. When placing a warranty claim you will need to provide proof of purchase (your tax invoice).
We are always looking to expand our product range and are constantly releasing the latest products and models.
The cooling and heating capacity of an air conditioner is measured in kilowatts (kW).
Airconditioner Sizing Guide
2.5 kW RANGE
SUITABLE FOR ROOMS APPROX 10 – 25 SQ METERS
- Bedrooms
- Studys
- Small lounges
- Small kitchens
- Small offices
3.5kW RANGE
SUITABLE FOR ROOMS APPROX 25 – 35 SQ METERS
- Bedrooms
- Bedrooms with ensuites
- Studys
- Small lounges
- Mid-sized kitchens
- Small rooms with high ceilings
- Offices
5 – 6kW RANGE
SUITABLE FOR ROOMS APPROX 35 – 60 SQ METERS
- Large bedrooms
- Bedrooms with ensuites
- Studys
- Mid-size lounges
- Large kitchens
- Mid-sized rooms with high ceilings
- Offices
7 – 8kW RANGE
SUITABLE FOR ROOMS APPROX 60 – 80 SQ METERS
- Large lounges
- Large open plan areas
- Small shops
- Offices
For more complex installations a heat load calculation should be performed. A heat load calculation comprises of many factors such as size of area, size of windows, roof type, building material, whether there is insulation, external shading or internal shading etc. Incorrect sizing will mean inadequate cooling/heating.
If you are unsure on sizing please email us, or go to Request a Quote or call 0473 575 383
